Product image 165L Pro Sight Glass Distillation Lid - Steam Condenser Lid - BrewZilla - DigiBoil
Product image 265L Pro Sight Glass Distillation Lid - Steam Condenser Lid - BrewZilla - DigiBoil
Product image 365L Pro Sight Glass Distillation Lid - Steam Condenser Lid - BrewZilla - DigiBoil
Product image 465L Pro Sight Glass Distillation Lid - Steam Condenser Lid - BrewZilla - DigiBoil
Product image 565L Pro Sight Glass Distillation Lid - Steam Condenser Lid - BrewZilla - DigiBoil
Product image 665L Pro Sight Glass Distillation Lid - Steam Condenser Lid - BrewZilla - DigiBoil

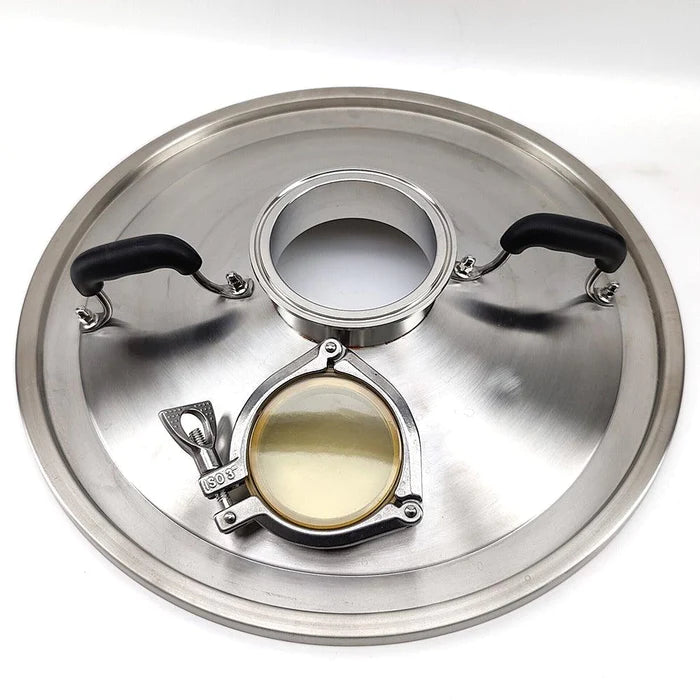

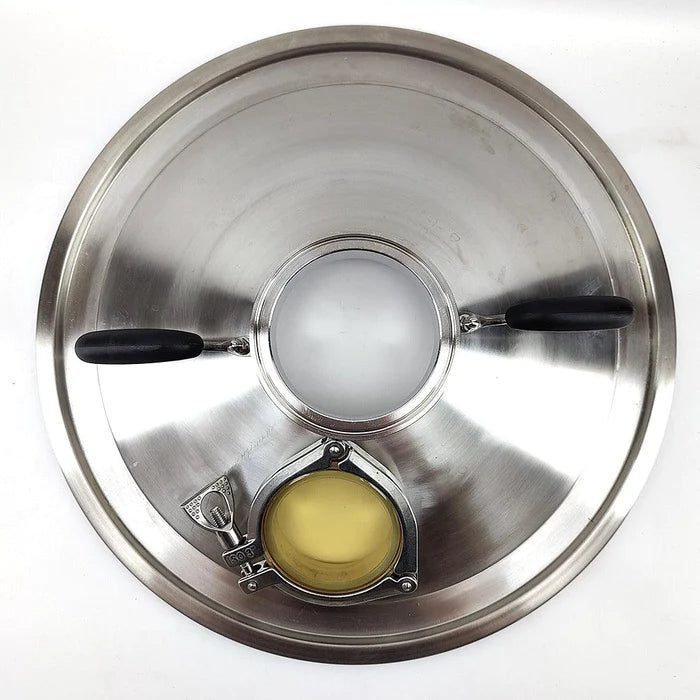

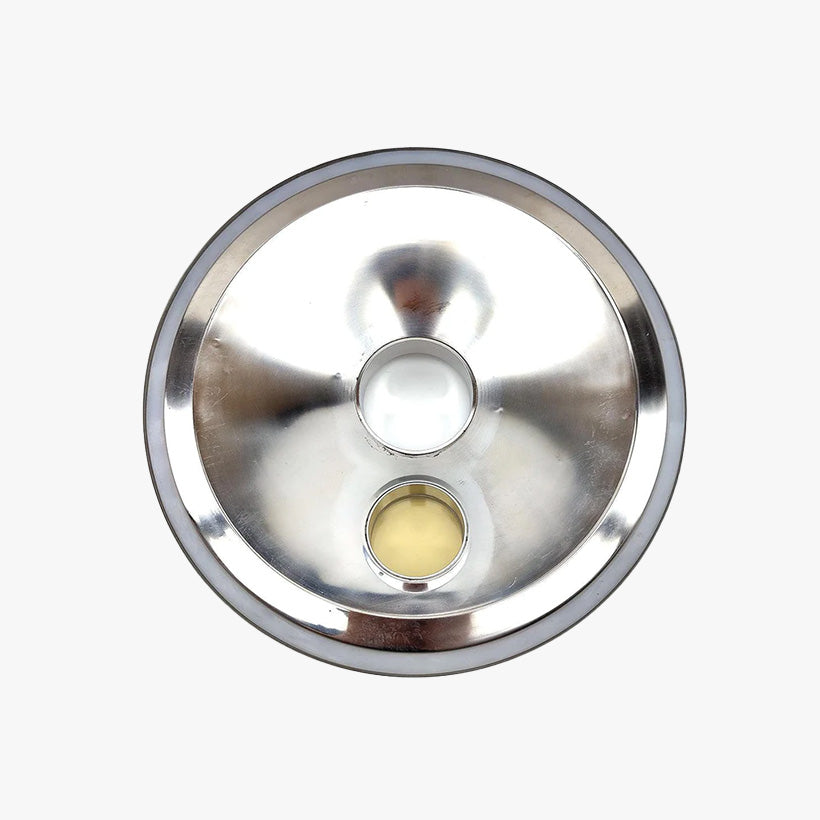

65L Pro Sight Glass Distillation Lid - Steam Condenser Lid - BrewZilla - DigiBoil

Regular price £139.95

We have 0 in stock

Designed to be extremely sturdy when using heavier 4 Inch stills or off-center steam condenser units.

PPSU is an excellent choice for components that are exposed to high temperatures (up to 200°C) and corrosive media due to its exceptional chemical resistance. As well as being extremely impact resistant.
We have decided to use this type of plastic because it also has superior thermal and mechanical properties with the added benefit of being transparent. This will allow us to injection mold intricate parts that would have been near impossible to do in stainless steel or lab-grade glass. Because this is a very unique type of plastic, it comes at a much higher cost per kg than other industrial plastics. So much so that it costs more than stainless steel.

Specifications
- Thicker Silicone O-Ring for a tighter seal

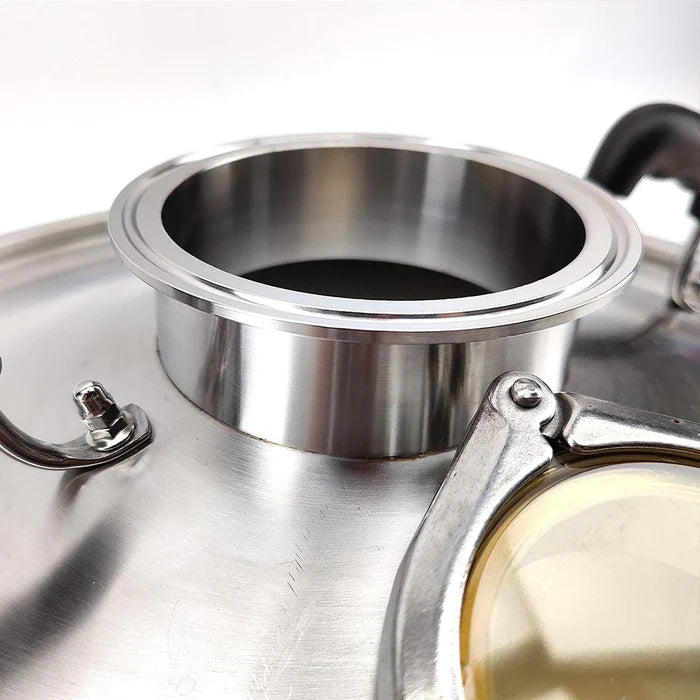

- 4 Inch Tri-clover Top Ferrule Port

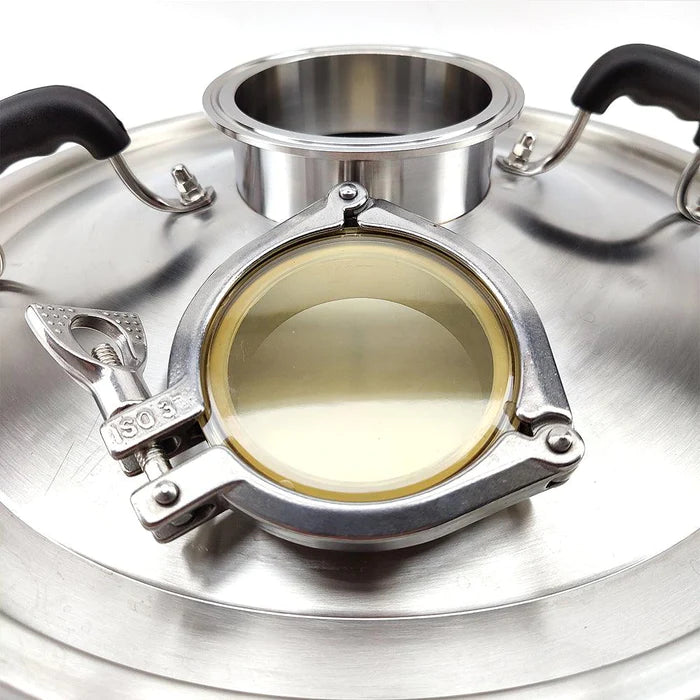

- 3 Inch Sight Glass Ferrule
Includes 3 Inch PPSU Sight Glass Disc, 3 Inch Tri-Clover Clamp and 3 Inch Tri-Clover Silicone Seal.

65L Pro Sight Glass Distillation / Steam Condenser Lid

Suits 65L Gen 4 and Gen 3 BrewZillas, 65L Digiboils and older model Robobrews.

Designed to be extremely sturdy when using heavier stills or off-center steam condenser units. Now you can watch your wash boil and see if it's foaming or about to puke. If you are brewing beer indoors you may want to use a steam condenser lid set, without having to take off the entire lid to do hop/salt additions, simply remove the 3" Sight Glass and throw in (take care when hot).

PPSU is an excellent choice for components that are exposed to high temperatures (up to 200°C) and corrosive media due to its exceptional chemical resistance. As well as being extremely impact resistant.
We have decided to use this type of plastic because it also has superior thermal and mechanical properties with the added benefit of being transparent. This will allow us to injection mold intricate parts that would have been near impossible to do in stainless steel or lab-grade glass. Because this is a very unique type of plastic, it comes at a much higher cost per kg than other industrial plastics. So much so that it costs more than stainless steel.


Can be used with the 4 Inch Tri-Clover Glass Sight Glass Bubble Plate Still

Can be used in conjunction with a 2" to 4" Tri-Clover Concentric Reducer a:
AlcoEngine Reflux Still
AlcoEngine Pot Still
and any other still that can be used with a 2 Inch Tri-Clover Port

Do you want to brew indoors but don't want the roof to get all sticky? Try the BrewZilla Steam Condenser Lid with the 2" to 4" Tri-Clover Concentric Reducer.


Specifications
- Thicker Silicone O-Ring for a tighter seal
- 4 Inch Tri-clover Top Ferrule Port
- 3 Inch Sight Glass Ferrule
Includes 3 Inch PPSU Sight Glass Disc, 3 Inch Tri-Clover Clamp and 3 Inch Tri-Clover Silicone Seal.

This unit has been designed to be used with the DigiBoil and BrewZilla 65L. We do not have data on other branded boilers if their clamps are suitable to make a complete seal.
